Synology sent me a new DiskStation to review after I’d acquired an older one myself to look at it’s ability to back up Microsoft 365 data (the updated name for Office 365). Being a Microsoft MVP in Office Apps and Services category, so I was very interested to see how it worked.

After reading up on and seeing that it was a completely free piece of software available as part of owning a DiskStation, I was hoping this would be a good solution at an incredibly low price – buy your DiskStation and disks, some time to set it up, and you’re done. To me, that’s already a very appealing offering, along with Synology having a good reputation for maintaining and supporting their hardware several years on – which was proved by the 7 year old DS1813+ I set up a few months ago.

I’ve left the new Intel-based DiskStation 1618+ – Quad Core CPU and 4GB RAM (expandable) running for about a month now, backing up my Microsoft 365 tenant’s data. I ticked ALL the options to see how it went. This tenant is just for me, so the data set is smaller than most tenants – but I do run a few live things through it like email and OneDrive. There’s also a little SharePoint Online data from Micrsoft 365 Groups and Teams I’ve played around with.

Here’s what the dashboard looks like now:

Some useful information there around what’s being backed up and how big it is. You might notice there’s a few errors on the summary. I drilled into those and each was because ‘The Microsoft Server is busy’, and a few minutes later it would try again successfully.

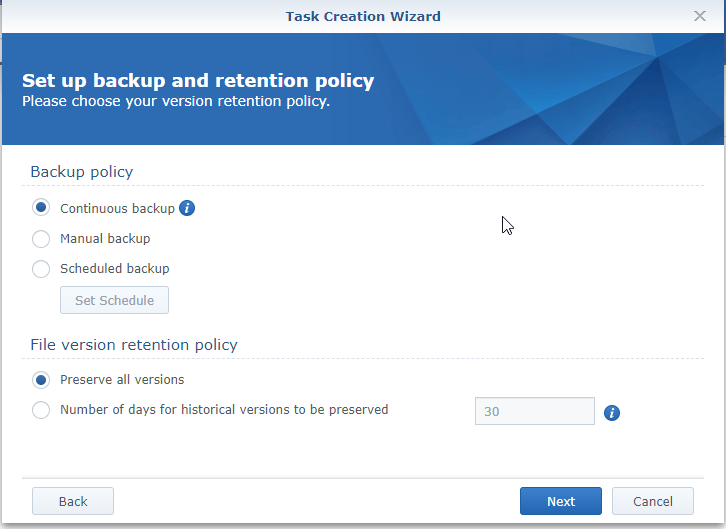

This is likely because I used a backup option to get incremental changes, rather than at a set time. Maybe I’m hitting it too much and getting blocked occasionally.

---

I know I’ve gotten ahead of myself here, so let’s go back to how to set this up. Assuming you have yourself a Synology DiskStation of some sort that supports ‘Active Backup for Office 365‘ – and which models are those? Here’s the list:

• 20 series:FS6400, FS3600, FS3400, RS820RP+, RS820+, DS920+, DS720+, DS620slim, DS420+, SA3600, SA3400, SA3200D
• 19 series:RS1619xs+, RS1219+, DS2419+, DS1819+, DS1019+, DVA3219
• 18 series:FS1018, RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+, DS918+, DS718+, DS418play, DS218+
• 17 series:FS3017, FS2017, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS1817+, DS1517+
• 16 series:RS18016xs+, RS2416RP+, RS2416+, DS916+, DS716+, DS716+II, DS416play, DS216+, DS216+II
• 15 series:RS815RP+, RS815+, RC18015xs+, DS3615xs, DS2415+, DS1815+, DS1515+, DS415+
• 14 series:RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+
• 13 series:RS10613xs+, RS3413xs+, DS2413+, DS1813+, DS1513+, DS713+
• 12 series:RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, DS3612xs, DS1812+, DS1512+, DS712+, DS412+
• 11 series:RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, DS3611xs, DS2411+, DS1511+, DS411+, DS411+II

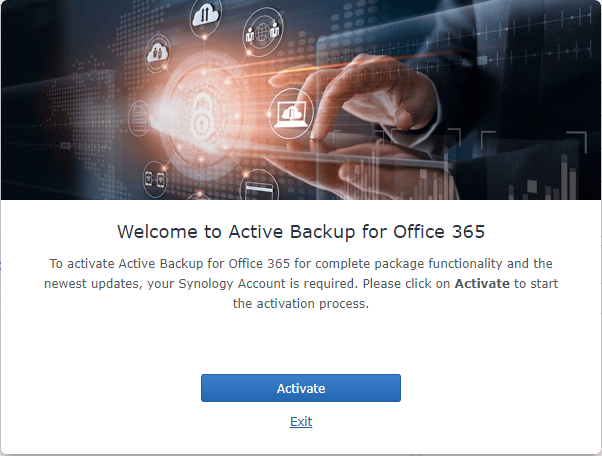

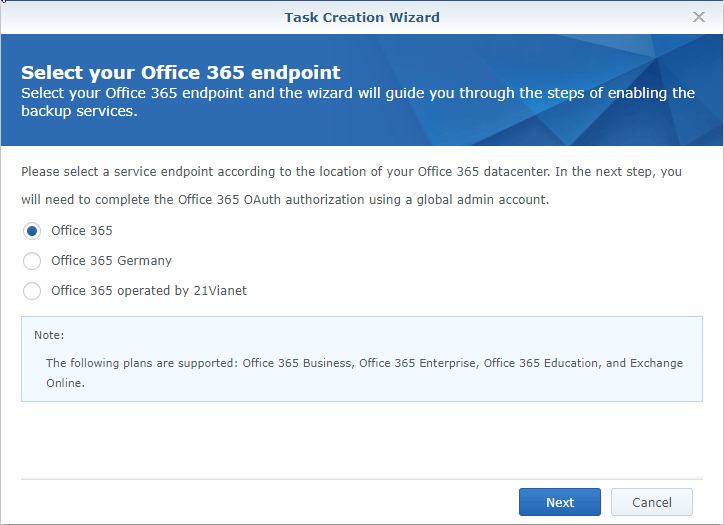

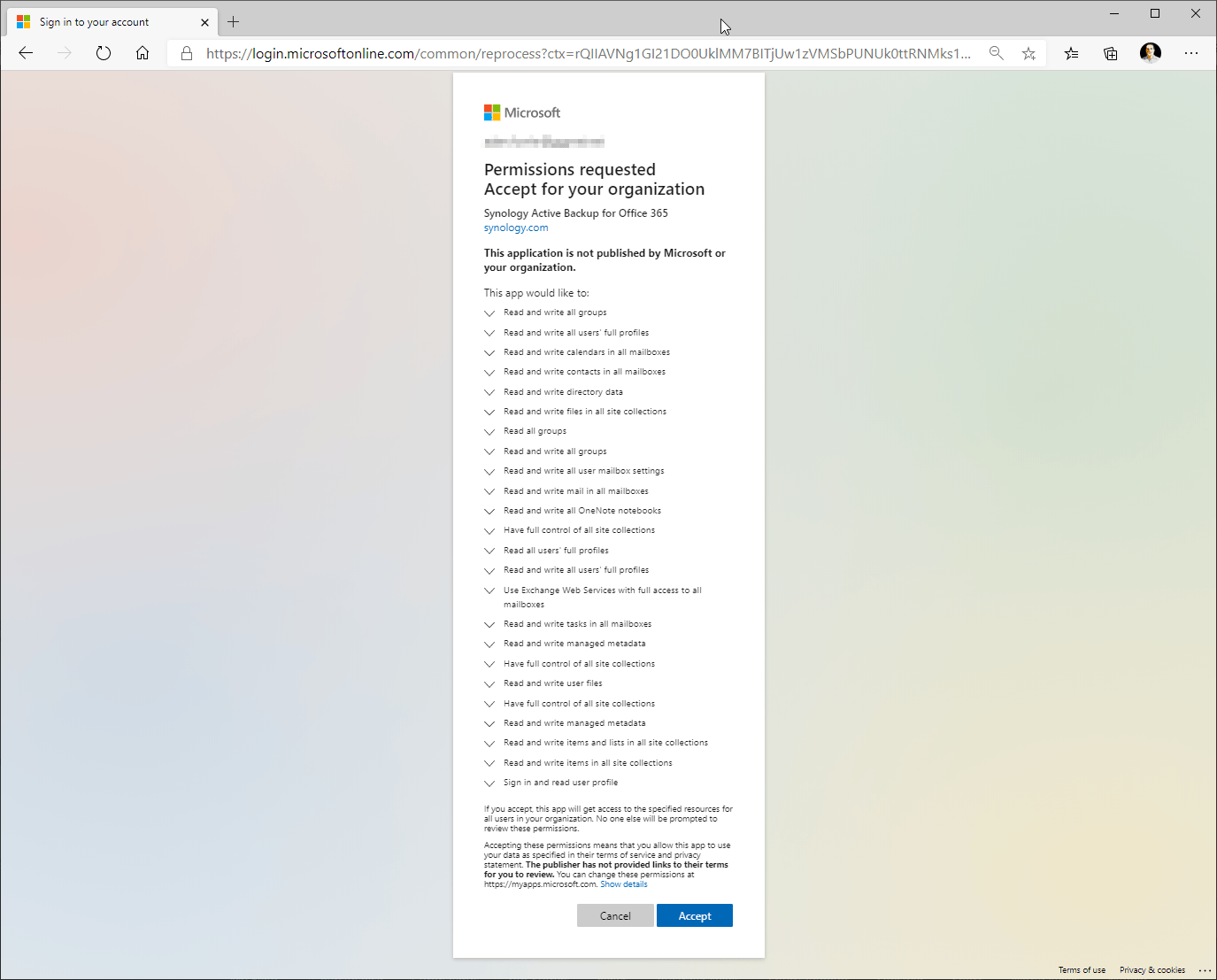

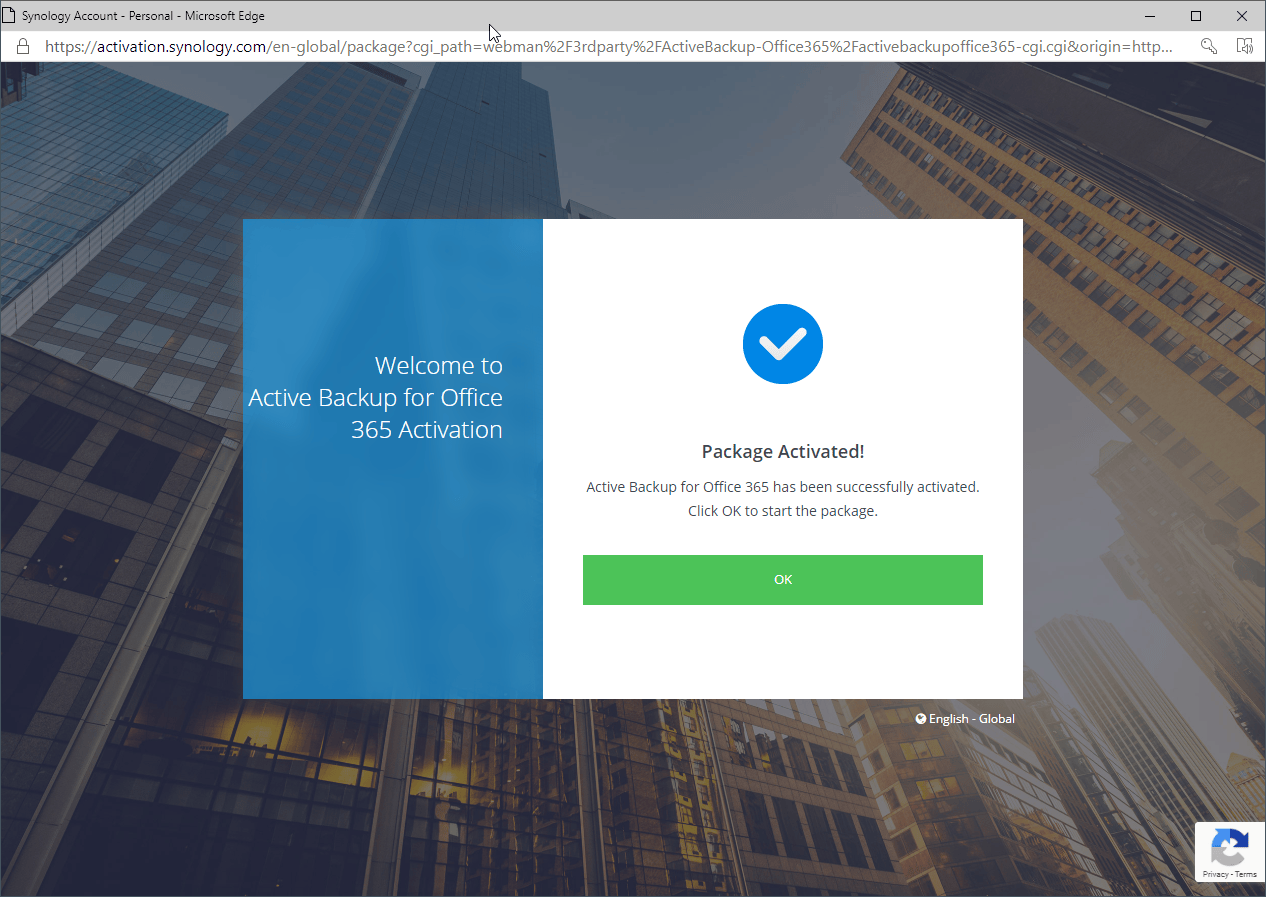

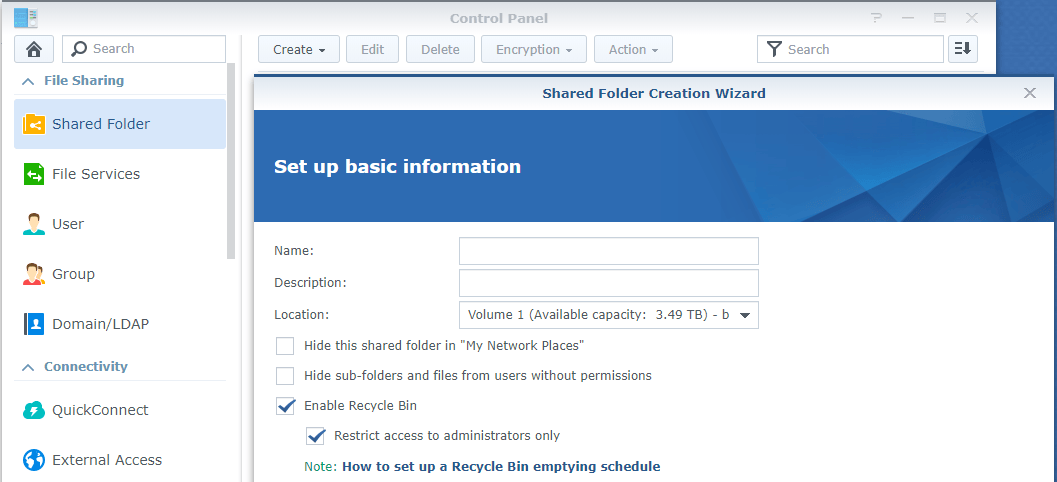

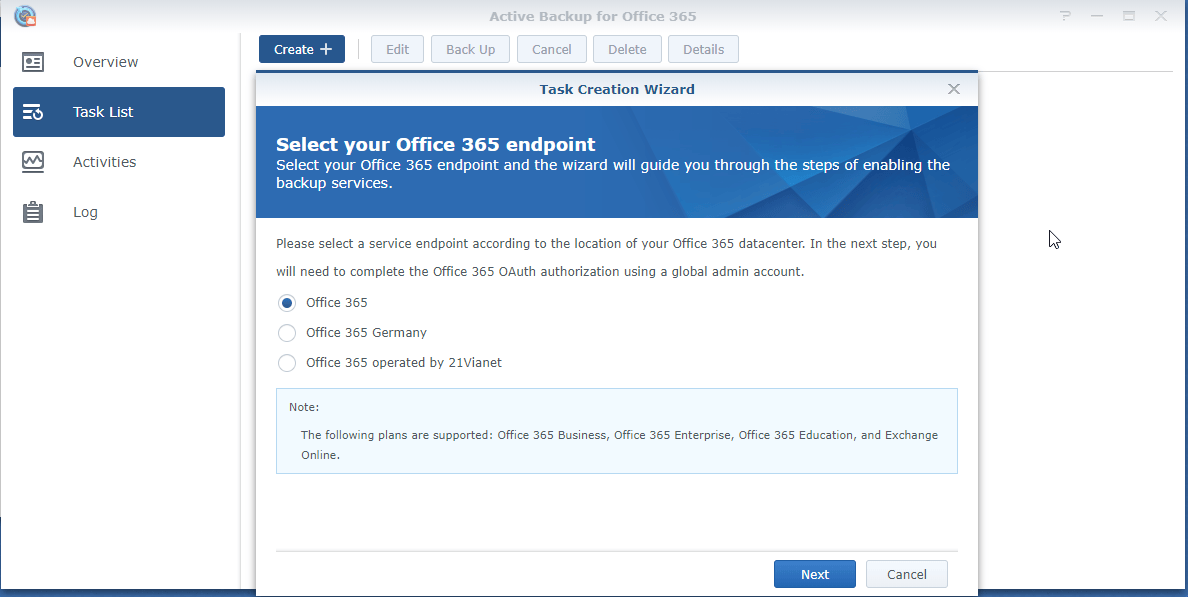

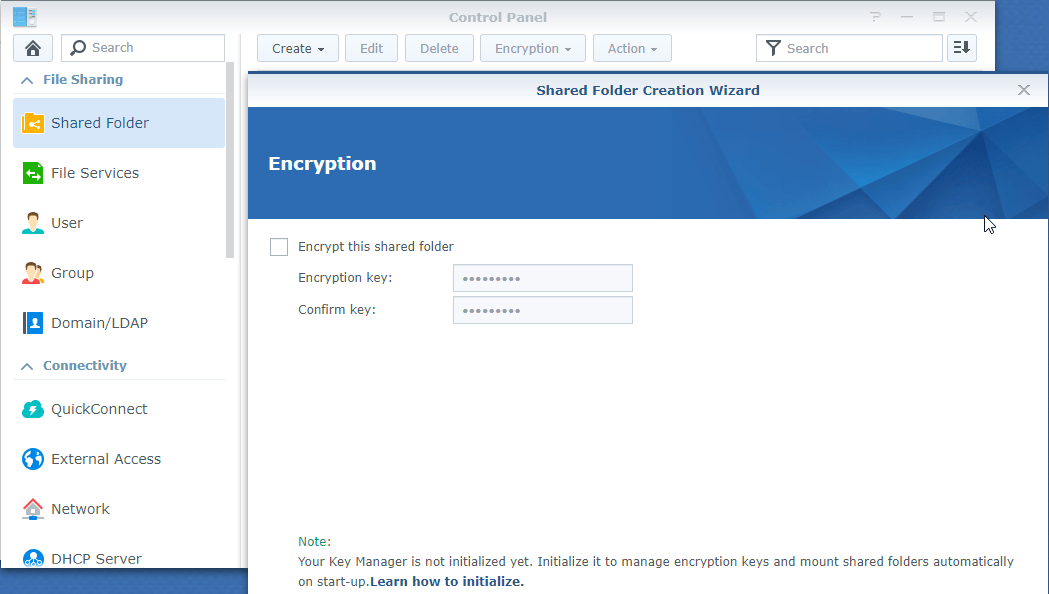

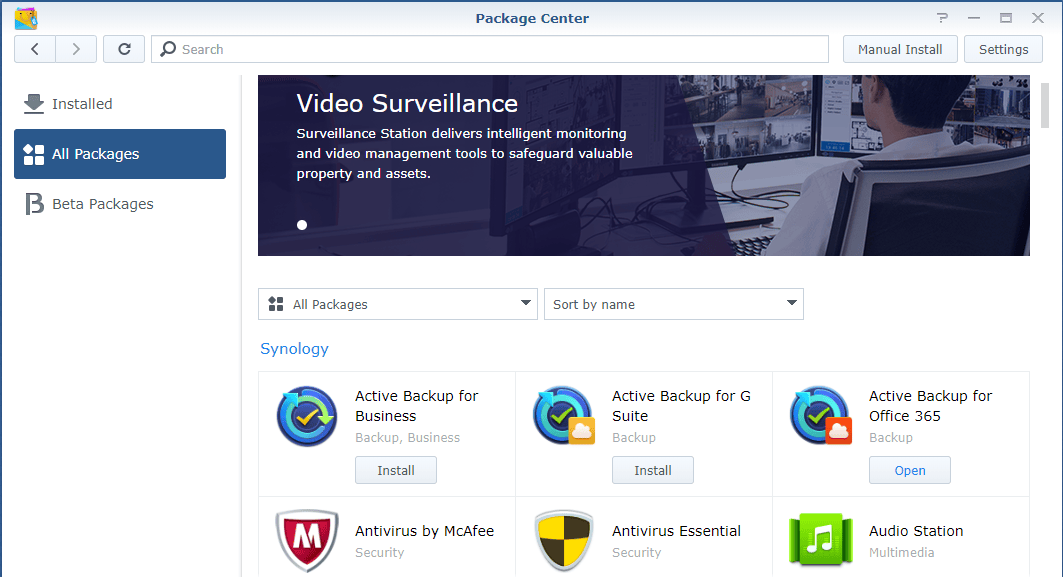

From the DiskStation desktop, open Package Center and follow these steps:

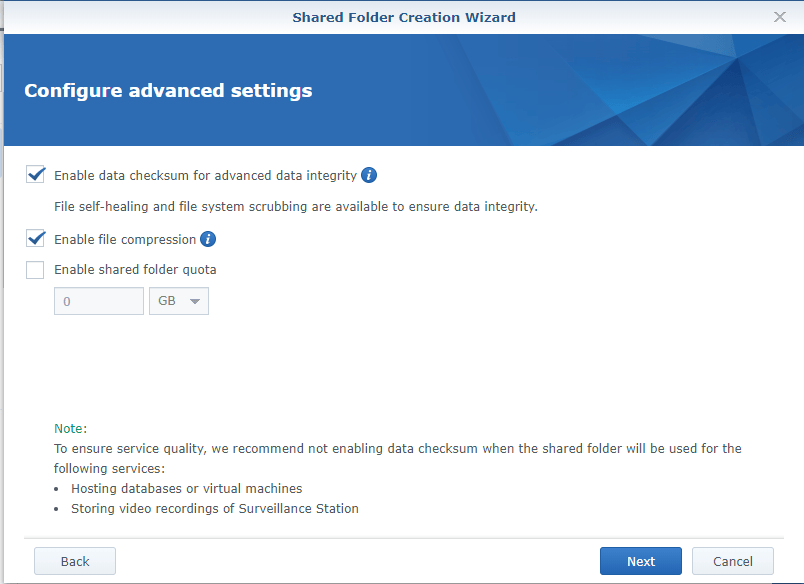

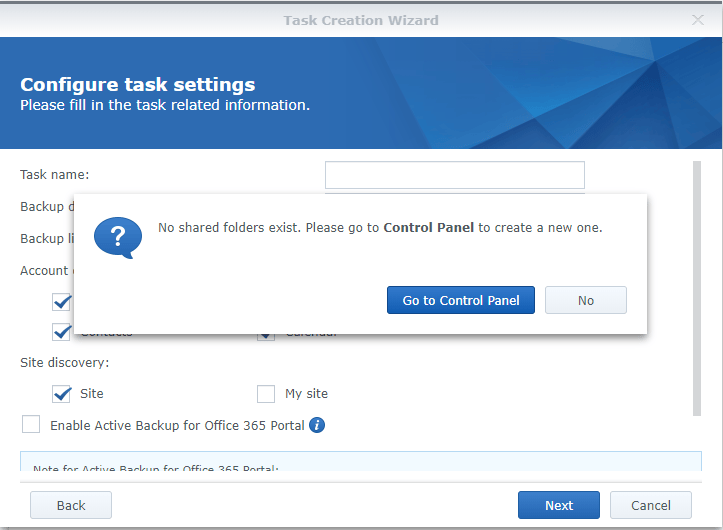

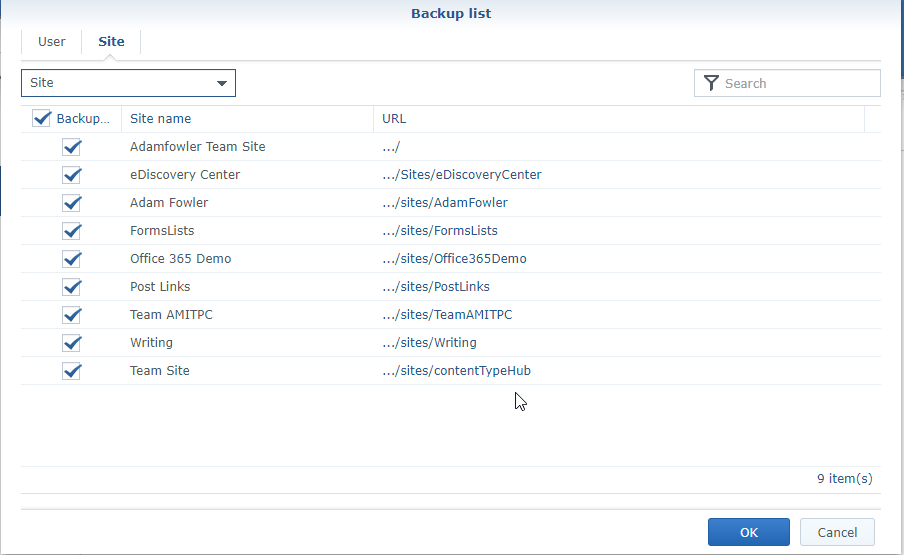

This was a very easy setup to do – I took screenshots of every step involved, but it barely needs an explanation for anyone who’s an admin of a Microsoft 365 Tenant.

The program will then go off and start backing up what you told it. The ‘Activities’ section of Active Backup for Office 365 will show any backups running, and you can also use the inbuilt ‘Resource Monitor’ to see upload/download speeds, disk utilization etc.

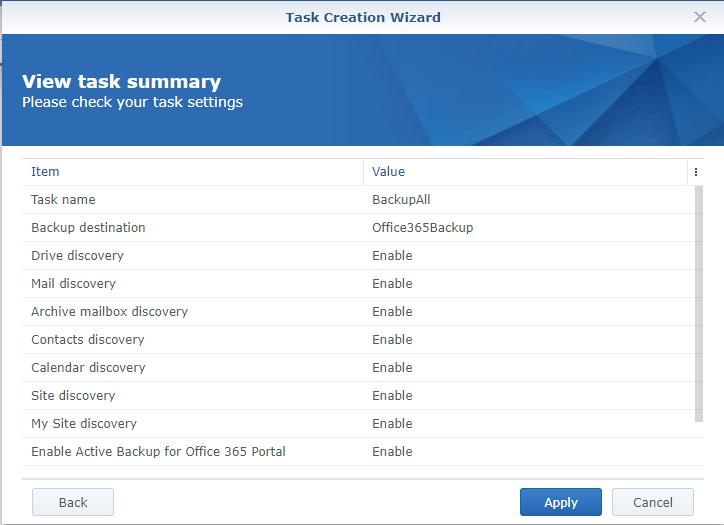

It’s also worth noting that the backup you created has an ‘account discovery’ option where it’ll find any new accounts created and automatically add them to the backup, which is great for not having to change backup settings each time you have a new user start.

---

Running a backup is great, but how do you restore the data? There’s a second app you’ll need, ‘Active Backup for Office 365 Portal’. Launching this will take you to a web interface where admins can browse all data, and users can browse just their own (user access can be disabled if you prefer).

On this web interface, you can then find the file(s) you want to restore, and restore them. You also get a nice timeline down the bottom so you can move backwards and forwards to see a snapshot of a certain time.

Although Mail, Calendar, Contact, and Site (SharePoint) support searching across all backups for names and contents, at the time of writing this isn’t possible for OneDrive backups. It’s worth being aware of this – if someone requests a file restore you’ll need to know exactly when from. I don’t see this as too much of an issue though, as OneDrive has great version control natively, and an automatic recycle bin – so you’d probably rely on the native solution for finding a file, but still it’s worth knowing this existing limitation.

That was the only slight negative I could find while testing. Everything else just worked, was quick to browse and restore, and incremental backups appeared to be on the DiskStation within several seconds after creating a new file in OneDrive.

Again, this is an incredibly cheap Office 365 backup solution. Some may question if you need to back up Office 365 at all. You could set up infinite retention against all content, so why take a backup? To me it’s a definite grey area, and partly depends how much you value the data. Microsoft may never lose your data, but will it be available 100% of the time? What if that important document is in your OneDrive and hadn’t synced down, and there was an outage? We’ve seen a few outages lately, including ones that have broken authentication – your data is still there, but you can’t get to it. In that scenario, having a local copy of something time sensitive could be worth it. Considering the relative low cost of buying a Synolgoy DiskStation – your disks are probably going to cost more than the unit itself, I consider it a pretty easy sell.
