How To Set Up Enterprise Mode for Microsoft Edge

Posted on by Adam Fowler

AKA How to force certain websites when opened in Edge, to instead open in Internet Explorer.

Update 15th June 2022:
Note that there’s another way to now do this, using Enterprise Site List Manager which is an in-browser version of the standalone Enterprise Mode Site List Manager tool. Check it out using edge://compat/SiteListManager and here’s the official documentation:
https://docs.microsoft.com/en-us/deployedge/edge-ie-mode-site-list-manager
To access this via the Microsoft 365 admin center: Settings – Microsoft 365 admin center

Update 17th January 2020:
The New Edge is out, and there’s 1 extra Group Policy to do: Enable ‘Configure Internet Explorer integration’ and set it to ‘Internet Explorer Mode’ to open inside Edge as IE, or ‘Internet Explorer 11’ to open sites seperately in IE11 . The rest of this article still applies and is needed to make this work. Official documentation on docs.microsoft.com

Original Post:

Microsoft Edge is undergoing a big change with the underlying platform being migrated to Chromium – things will change with that (along with a new Internet Explorer mode) but that doesn’t help right now.

Many companies have certain websites they need to use that either require Internet Explorer, or work best in Internet Explorer. This isn’t about what browser is ‘best’, but some solutions were designed with only Internet Explorer in use.

Getting users to use the right website in the right scenario can be a pain, and every user seems to have their own opinion on what browser they prefer to use. Microsoft Edge has a great solution for this – Enterprise Mode. There was also an Enterprise Mode in Internet Explorer that worked in a similar way too, where you could force certain sites to run as a certain version of IE for compatibility reasons.

This is quite easy to set up, but I’ve found the existing documentation rather confusing to follow and doesn’t give an end to end explanation – or documentation is rather outdated and was written when the feature first came out, with a lot of options changing since then.

Step 1 – Enterprise Mode Site List Manager

Download Enterprise Mode Site List Manager (schema v.2) and install it. This is the program you’ll use to manage the sites you want to force to use IE rather than Edge:

Enterprise Mode Site List Manager will start off blank. Click the ‘Add’ button on the bottom, type in the URL of the site you want to use (don’t worry about http or https if you want to catch both). You then tell it what to do with that URL – Open in IE, Edge, or do nothing. Since we’re opening everything in Edge except what we want in this list, open in IE11 is the option we want, and leave it at the default IE8 Enterprise Mode (or change this if you need a different compatibility mode).

There’s two parts to maintaining a list – Exporting/Importing lists, and Saving as XML:

Once you have a record to test, go to File > Export. This will save your details into an .emie2 file, and put that somewhere central and safe. The idea is that you’ll need to import that file list to make a change, then export again. If you don’t do this, you won’t have a way for others to get the list of sites and make changes by importing that file at a later date. It has in-built version control (this is important, more later), in the screenshot above you can see it’s version 5.

Then, you can save your URL to an XML file. This is what Edge will read when it launches. Either save this file centrally where everyone can read it (no write access required, just read), or copy it to everyone’s computer locally via GPO. Personally I’ve just put it in a central location.

Step 2 – Configure Group Policy or Intune

I’m using Group Policy, but the Microsoft Documentation mentions Intune is supported too – we’re only changing registry settings, so that makes sense.

Turning on Enterprise Mode can be done at either the Computer or User level, and is under > Policies > Administrative Templates > Windows Components > Microsoft Edge > Configure the Enterprise Mode Site List.

Enable this setting, and in the options enter the path of where your XML is – e.g. \\server\sharename\edge.xml – or C:\Data\edgesettings.xml. Although the Group Policy says URL, it’ll accept UNC paths or drives.

If you’ve used a Computer Configuration setting, gpupdate then reboot (or reboot twice). To tell if the setting has applied, check the value of the registry setting:

HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\MicrosoftEdge\Main\EnterpriseMode

or

HKEY_CURRENT_USER\SOFTWARE\Policies\Microsoft\MicrosoftEdge\Main\EnterpriseMode

SiteList = The path you entered in the Group Policy setting.

If you’re see that, great! Group Policy is working. One caveat if you have System Center Configuration Manager (ConfigMgr) – it can potentially use this setting also as per this technet thread which is exactly what I had. I was testing a user policy, but this was configured at both the user and computer levels so my user setting was being ignored. I’m not sure if this is still used, but worth being aware of.

Version control is also recorded in the registry. It lives under:

HKEY_CURRENT_USER\Software\Microsoft\MicrosoftEdge\Main\EnterpriseMode

CurrentVersion = 5

regardless of the SiteList being under Computer or User. There’s a few catches with this – first, it’ll only show up after Edge is launched, and you wait ~65 seconds. It’ll show the same version as what’s contained in the XML, which was the version we saw in Enterprise Mode Site List Manager.

If you have the ConfigMgr setting, or have ever had Enterprise Mode for Edge enabled in your environment, then the version might already exist and be higher than what you’ve tried to deploy. On my PC, I saw version 28000 something – that’s a lot of versions.

You’ll need to either delete that value for everyone to start back at 0, then after Edge is launched per user, it’ll update to whatever your XML file contains, or update the version in Enterprise Mode Site List Manager to a higher number than whatever’s out there in your environment.

To change the version in Enterprise Mode Site List Manager, on the computer with it installed navigate to

C:\Users\your username\AppData\Roaming\EMIESiteListManager\ – in that path should be a file called SiteList.xml.

That file should have the first line as <site-list version=”5″> or whatever the current version is, and you can just change that ‘5’ to whatever number you want. Open Enterprise Mode Site List Manager and you’ll see that updated version number, which will then get written +1 to the XML file next time you save it out.

That’s really it – it’s simple, but there are a few catches I ran into when testing. Once this is in place, if a user goes to a site that you’ve listed in the XML, a new window opens in IE and goes to that site instead. It’ll also support subsites, so you don’t need to sent traffic for an entire domain like adamfowlerit.com there, it could be adamfowlerit.com/news and only hits to that subdomain will be triggered.

There’s a few other Group Policy settings around this such as forcing all intranet sites to go to IE, you’ll need to work out what’s best for your environment.

How To Suppress “A website wants to open web content using this program on your computer”

Posted on by Adam Fowler

As part of Windows 10 testing, I came across this prompt.

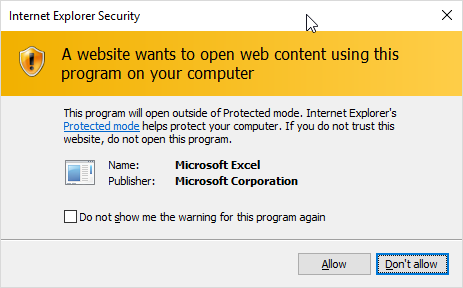

Internet Explorer Security
A website wants to open web content using this program on your computer
This program will open outside of Protected mode. Internet Explorer's
Protected mode helps protect your computer. If you do not trust this
website, do not open this program.
Name: XXX
Publisher XXX

Do not show me this warning for this program again

When you open a file from a site that is an internet site zone (that is, not in your intranet zone or trusted sites zone) for Internet Explorer 11, you’ll be prompted with the above Internet Explorer Security prompt.

This doesn’t happen for IE11 on Windows 7.

Because there’s a tickbox that lets a user suppress the prompt in future for when that particular program is called, it may just get in the way for users the first time they see it and cause confusion. It’s on a per app basis – once you allow Microsoft Word, it’s allowed for all sites, but that won’t allow Microsoft Excel.

To stop this prompt for commonly used applications, you can use Group Policy to roll out registry settings that would be applied if the user had ticked the box already for that app.

The registry settings live in HKEY_CURRENT_USER\Software\Microsoft\Internet Explorer\Low Rights\ElevationPolicy\ with a unique GUID for each application.

Here’s a screenshot showing settings for Microsoft Word:

Here’s the raw registry settings:

Windows Registry Editor Version 5.00

[HKEY_CURRENT_USER\Software\Microsoft\Internet Explorer\Low Rights\ElevationPolicy\{342263D0-430D-4325-919B-666CE94C4334}]
"Policy"=dword:00000003
"AppPath"="C:\\Program Files (x86)\\Microsoft Office\\Office16"
"AppName"="WINWORD.EXE"

This can be saved into a .reg file, imported onto your PC, then using Group Policy’s Registry Import Wizard, imported into a Group Policy and deployed. Again, this will need to be done for each application you want to automatically allow.

Edit: I’ve found there’s a possible second location, depending what app the link is trying to call:

HKEY_CURRENT_USER\Software\Microsoft\Internet Explorer\ProtocolExecute

Under the specific protocol key, there will be a value for ‘WarnOnOpen’ with the DWORD value of 0 to disable it.

Chinese Characters in IE11, Edge and Windows 10

Posted on by Adam Fowler

I recently worked on an issue where all Windows 10 users were seeing two strange display issues on certain websites via Internet Explorer 11 and Edge. There were two noticeable symptoms:

  • Chinese characters would show in particular locations on many websites. These were often buttons, but sometimes other symbols.
  • Buttons would be completely blank. The buttons themselves worked, which you could either use if they had a graphical representation of the button still, or you knew where to click.

This was even presenting itself in Office 365 – I couldn’t see the Notifications, Settings or Help buttons, and they would instead show as blank boxes.

This was found while piloting Windows 10 from Windows 7. The visible options in Internet Explorer seemed identical. and other browsers weren’t affected – Chrome could display these sites perfectly fine.

I worked out what the problem and fix was (jump to the end if you want that now), but here’s the story on how we got to this broken state:

As part of prepping for Windows 10, I followed Microsoft’s Security Baseline documentation which contains a handy Excel spreadsheet, with recommendations on what Group Policy settings you should use for best security practises. I followed this (I’ve linked to a newer version) and made choices based on understanding each option, and what worked for us. There were very few settings I didn’t follow exactly.

One of these settings was ‘Untrusted Font Blocking‘. The document recommended enabling this, to stop untrusted fonts being used as they’re a security risk – the loading of a font can allow elevated privileges, and has been used before. Made sense to me, so I enabled it.

This is what Group Policy says about Untrusted Font Blocking:

This security feature provides a global setting to prevent programs from loading untrusted fonts. Untrusted fonts are any font installed outside of the %windir%\Fonts directory. This feature can be configured to be in 3 modes: On, Off, and Audit. By default, it is Off and no fonts are blocked. If you aren’t quite ready to deploy this feature into your organization, you can run it in Audit mode to see if blocking untrusted fonts causes any usability or compatibility issues.

Eventually with a lot of testing and googling, I tried disabling this option – and it worked. Once you know the fix to a problem, it’s really easy to work backwards to find out more about it.

It turns out that in simple terms, websites can present their own fonts to use. It may be easier to present an arrow that’s from a font, rather than making a graphic of a font. Usually the site will load the font on the fly, but blocking that means the site fails back to a ‘best match’ on the font, which seems to be a font for Chinese characters, or a font that has a blank character for the matched result. Makes sense.

Microsoft changed their mind on this recommendation, only a month ago from time of writing. That recommendation change is worth reading, as it explained why they did it, and why they’re now changing their mind. The good news is that you’re not losing security by abandoning this setting, as the way fonts are parsed has changed from kernel to sandboxed user mode.

TL;DR version:

Turn off Untrusted Font Blocking through either of these methods:

Group Policy – Disable or change to Not Configured: Computer Configuration > Policies > Administrative Templates > System > Mitigation Options > Untrusted Font Blocking

Registry Setting – HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Kernel\ – QWORD MitigationOptions

  • To turn this feature on. Type 1000000000000.
  • To turn this feature off. Type 2000000000000.
  • To audit with this feature. Type 3000000000000.Important
    Your existing MitigationOptions values should be saved during your update. For example, if the current value is 1000, your updated value should be 1000000001000
